Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015

Item #: 61-1795
Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015
Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015
Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015
Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015
Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015
Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015 Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015 Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015 Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015 Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015
Click To Enlarge
Mazda Miata Sway Bar Endlinks - Front/Rear 2006-2015

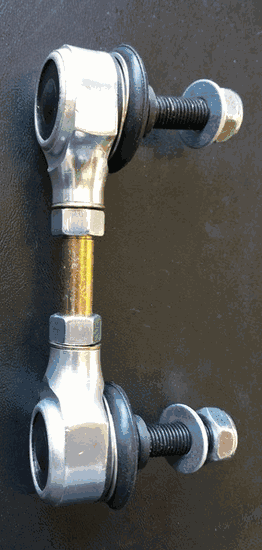

Stronger endlinks are a MUST when you change to a stiffer sway bar and when you lower your MX5 you want adjustable endlinks for correct geometry (bar ends level). Good-Win Racing Sway Bar End Links include TWO center studs so that this one endlink has the widest range of adjustment of any endlink on the market. These can be adjusted from the same length as stock down to much shorter for lowered cars. This also means that this same endlink works for both the front and rear sway bars. The ball-joint style link end is housed in a CNC-machined aluminum housing, offering silent, smooth operation combined with excellent durability and performance.

Sold INDIVIDUALLY. You want TWO of these per sway bar so be sure to order two if you want two!

Stock endlink length (Front): 100mm Stock endlink length (Rear): 84mm GWR endlink adjustable range: 115mm (max. length with long stud) to 78mm (min. length with short stud) * 78mm length is 5mm shorter than even the Racing Beat rear endlinks.

- Fits 2006-2015 MX-5 and 2004-2012 RX-8.

- Direct replacements for the stock end links.

- Can be used on both standard height and lowered vehicles.

- Can be easily installed using only simple hand tools.

- Comes complete with securing hardware.

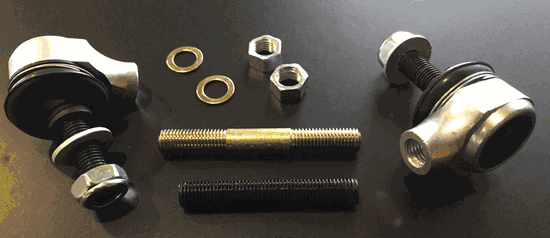

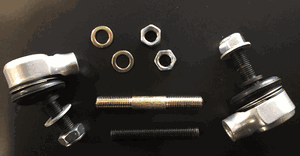

INSTALLATION: Endlinks ship un-assembled so that you can assemble using the correct center stud length for your needs. Jam nuts on the center stud take a 14mm wrench. To tighten the lock nuts on the studs on both ball joint ends you insert a 5mm allen key in to the end of the stud to hold it in place and then use a 17mm open-ended wrench to tighten the lock nut down while holding the stud stationary with the allen key.

Sold INDIVIDUALLY
