Racing Beat MX-5 Miata Race Connecting Pipe 2006-2015

Racing Beat MX-5 Miata Race Connecting Pipe 2006-2015

*Manual Transmission ONLY

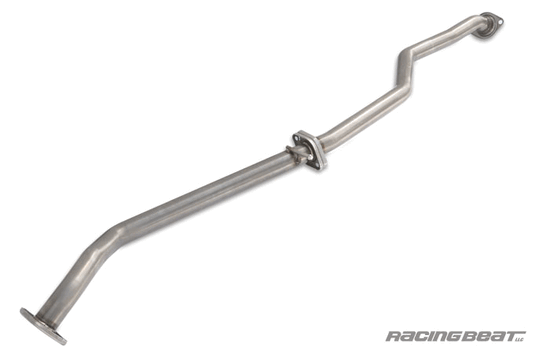

The Racing Beat MX-5 NC Competition Race Connecting Pipe (2-piece) is intended to replace the stock mid-pipe on the MX-5, thereby eliminating the integrated secondary catalytic converter and presilencer unit. For dyno result information for the Racing Beat MX-5 Header and Race Connecting Pipe unit

Manufactured using 18-gauge, 2.375-inch OD stainless steel tubing, this connecting pipe features mandrel bends and OEM style connecting flanges. Designed as a bolt-on component, this race connecting pipe is easy to install and utilizes all existing mounting brackets and hangers.

Fitting Note:
This connecting pipe section will mate to the outlet of the stock exhaust manifold or Racing Beat Header, and the inlet of the stock muffler or the Racing Beat Muffler. On international models (UK-RHD) this connecting pipe MUST be installed with a Racing Beat Header for correct fitment - this connecting pipe will not mate to the outlet of the stock exhaust manifold section due to length differences.

Gaskets Requirements:
Front - The front flange is a OEM swivel-style flange. The large original do-nut swivel gasket can be reused unless it shows signs of distress or significant wear. Middle - The race pipe is supplied with a gasket for use between the front and rear sections. Rear - The original gasket, or a gasket supplied with a Racing Beat (or comparable) muffler can be used. If needed, a replacement gasket is available separately.

Emissions Note:
The stock mid-pipe does not feature an oxygen sensor after the catalytic converter. (The oxygen sensors in the MX-5 exhaust system are located before and after the primary catalytic converter, which is located under the stock exhaust manifold near the engine.) Therefore, installation of this competition race connecting pipe will not impact the OBD II system and installation of this race pipe will not cause a "check engine" light to occur. However, since a factory-placed catalytic converter is being removed by the install of this component, this race pipe is NOT emissions legal for street use.
