Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012

Item #: 54109
Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012
Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012
Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012
Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012
Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012
Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012
Click To Enlarge

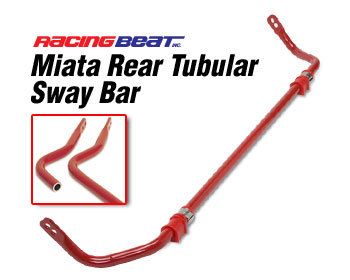

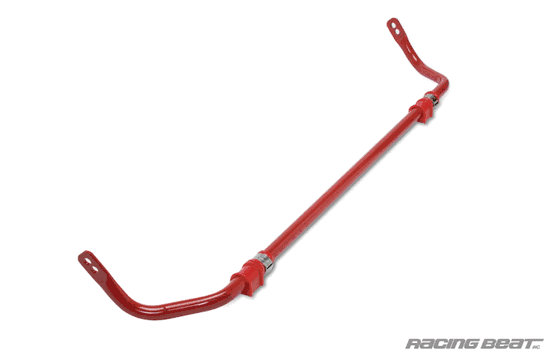

Racing Beat Mazda MX-5 Miata Rear Tubular Sway Bar 2006-2012

Designed by Racing Beat as the companion bar for our MX-5 Front Sway bar, this rear bar can be matched with our front bar for a variety of street or race uses.

Specifications

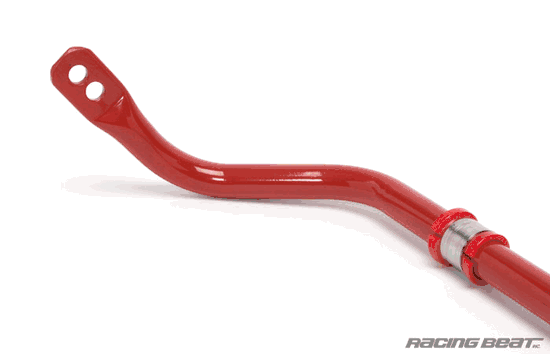

The Racing Beat Tubular MX-5 Rear Sway Bar, weighing only 5 lbs, is manufactured using .75" OD (19mm) x 3/32-inch wall, 4130 chrome-moly tubular steel, as compared to the .43" OD (11mm) Mazda stock sway bar (or 12mm Sport Suspension bar). As calcuated by Racing Beat, this bar is 6.2 times stiffer than the 11mm stock bar and 4.4 times as stiff as the 12mm bar. The Racing Beat Tubular MX-5 Rear Sway Bar is designed with two (2) endlink mounting positions and is finished with a distinctive, red powder coating, providing a smooth, glossy protective layer. Racing Beat sway bars are supplied with urethane bushings, Prothane bushing grease, and detailed installation instructions.

These Racing Beat sway bars feature a pair of urethane Stopper Bushings, secured with band clamp retainers, serving as a preventative device against lateral movement of the sway bar during hard cornering. This simple and effective Stopper Bushing method effectively replicates the method used by Mazda on the stock bar.
