Racing Beat Sport/Race MX-5 Exhaust MX-5 - Brembo Equipped with Rear Diffuser 2016-2024
Racing Beat Sport/Race Exhaust - 2016-2024 MX-5 ND
(Brembo/Appearance Package equipped models)
The Racing Beat Sport/Race Exhaust for the MX-5 ND offers an equal-part combination of enthusiastic fun and rebellious spirit. For over 25 years Racing Beat has been developing and providing sport-tuned exhaust systems for the Miata/MX-5 application. Racing Beat exhaust components have been recognized by the aftermarket community as high-quality, great sounding, and beautifully-crafted performance upgrades for the Miata. Many of Racing Beat's exhaust components have debuted on Mazda's SEMA Show vehicles, making a statement to Racing Beat's name as a provider of high-quality and proven products.
Sport Tuned Simplicity
Inspired to encompass the true MX-5 driving experience, the Racing Beat Sport/Race Exhaust has been designed to provide an aggressive and exciting exhaust note throughout the entire RPM range. No mechanical gimmicks, valves, tip inserts, etc.. are needed to unleash or dampen the character of the Racing Beat Sport/Race Exhaust; this exhaust will appeal to the true MX-5 motoring enthusiast. True to the ideals of racing principles, we've stripped this exhaust down to only the most critical elements in an attempt to strip away unwanted excess weight.

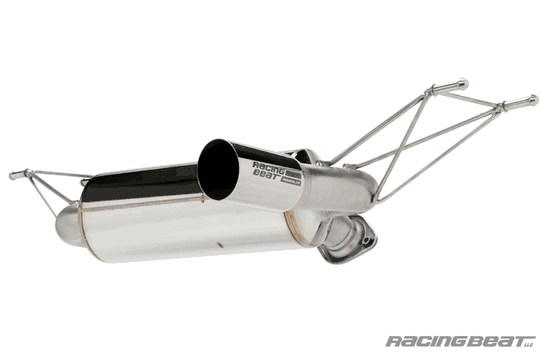

Produced in Racing Beat's California manufacturing facility, the Sport/Race Exhaust features a MX-5-designed 304-stainless steel muffler canister, inlet and outlet tubing, single-wall tip (with etched Racing Beat logo), attachment hangers, and connecting flange. The muffler canister utilized features a straight-through design for optimum exhaust gas flow and includes a combination of stainless steel and high-temperature ceramic wool packing material for sound absorption. Racing Beat incorporated a Mazda-OE mounting flange on the inlet end of the exhaust to securely capture, retain and seal the stock donut-shaped swivel gasket. The stock mounting studs and retaining springs are retained for use with Racing Beat exhaust.
Weight Savings
Stock system = 20.5 lbs
Racing Beat Race Muffler = 13.75 lbs
This is a 33% reduction in weight over the stock system!
Hanger Assemblies – Keeping it Light
In keeping with the emphasis on the lightweight aspect of the MX-5 ND design principles, Racing Beat adopted a unique approach to the development of the extensive hanger assemblies that were required for this muffler. The ½” OD hangers on the stock MX-5 muffler posed an interesting challenge, if we used ½” OD hanger rod material for the Racing Beat hangers, these hanger assemblies would prove to be unnecessarily heavy. As an alternative, we used lighter 5/16” OD rod material for the lengthy hanger assemblies, and designed a unique ½” OD forged end hanger, which we then mated to the outlet end of each hanger assembly. The design of this hanger end ensures a secure "no slip" attachment with the stock rubber muffler hangers to prevent lateral movement of the exhaust during hard cornering.
