Racing Beat Exedy Lightweight Steel Flywheel 94-05 Miata 1.8 1994-2005

Item #: 51455
Racing Beat Exedy Lightweight Steel Flywheel 94-05 Miata 1.8 1994-2005
Racing Beat Exedy Lightweight Steel Flywheel 94-05 Miata 1.8 1994-2005
Racing Beat Exedy Lightweight Steel Flywheel 94-05 Miata 1.8 1994-2005
Racing Beat Exedy Lightweight Steel Flywheel 94-05 Miata 1.8 1994-2005
Racing Beat Exedy Lightweight Steel Flywheel 94-05 Miata 1.8 1994-2005
Click To Enlarge
Racing Beat Exedy Lightweight Steel Flywheel 94-05 Miata 1.8 1994-2005

This stunning Exedy Lightweight Steel Flywheel can be installed on all 1994-2005 Miata applications (including MazdaSpeed models) and is compatible with both Mazda OE and performance-upgrade aftermarket clutch discs. Exedy flywheels are SFI-approved for use in specific racing applications.

Applications Designed to retain enough mass for comfortable standing starts, this Exedy Miata flywheel is ideal for street use yet it is lighter to afford an improvement in low speed acceleration and to make shifting much smoother. For street use this lightweight steel flywheel not only allows the engine to accelerate more rapidly but allows for quicker and more precise shifting.This flywheel (215mm OD disc) can be used on the earlier 1990-93 Miata 1.6 ltr (200mm OD disc) application ONLY if the 1994-2005 (1.8 ltr) pressure plate AND clutch disc are used.

Precision Machining Precision CNC-machined from a solid one-piece billet chromoly steel forging, the Exedy Miata flywheel features a fully-machined integrated ring gear for seamless starter operation.

Weight Comparison The weight of the stock Miata 1.8 ltr flywheel is 19 lbs as compared to 12 lbs for the Exedy Lightweight Miata Steel Flywheel.

Installation Hardware Exedy Flywheel kits include the flywheel unit and the appropriate mounting hardware, which includes the appropriate tensile-strength hardware to attach the pressure plate to the flywheel. DO NOT use other aftermarket flywheel mounting kits with the Exedy flywheels.

We strongly recommend replacing the throwout bearing during any clutch work to ensure trouble free performance. Also, we recommend replacing the transmission front and rear seal kit when re-installing the transmission to reduce the possibility of leakage.

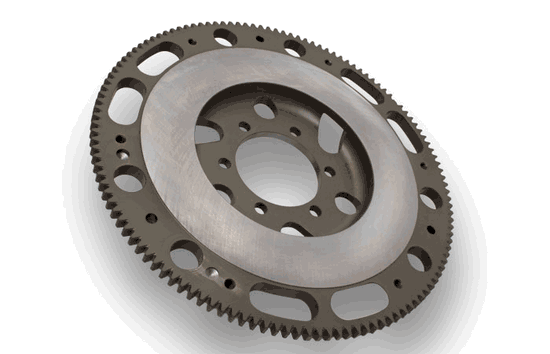

Actual product image not shown in photo.
